VH3000HE 7,2 kWh Energy storage system

Store / Energy Storage / Lead Energy Storage Systems

€ 1 930,00

Price incl. VAT (21%) € 334,96

In stock

Product Details

Meet our professional energy storage system, a versatile solution for efficient energy management. This system has a 3 kWh capacity, allowing you to store up to 7.2 kWh of energy when combined with 12V lead-acid batteries (not included). The system has room for as many as four 12V batteries, giving you the flexibility to greatly expand your storage capacity.

Description

Equipped with an inverter including a built-in charger, this energy storage system works as a single-phase 230V 50HZ OFF-grid solar inverter. It seamlessly converts the stored energy in the lead-acid batteries into usable electricity for you all your appliances.

With an operating voltage of 48VDC and compatibility with 230 volt 50HZ, this Van Hall system allows you to keep the environment clean and green by making the most of solar energy. By relying less on traditional sources of electricity, you can reduce your electricity costs.

One of the remarkable advantages of our system is its ability to act as an uninterruptible power supply (UPS) during power outages. This ensures that your critical devices and systems remain operational, giving you backup power and preventing interruptions.

The storage system allows you to use electricity even in areas without access to the grid. Whether in a remote location or in emergency situations, you can rely on the stored energy for power.

Specifications

General

- Inverter with built-in charger

- Single-phase 230V 50HZ OFF-grid solar inverter

- Voltage: 48VDC - 230V 50HZ

- Maximum power output with more than 98% efficiency

- Pure sine wave output

- Operating temperature: -20 ~ +70 degrees Celsius

- Protection: high/low voltage input/output, overtemperature, short circuit protection, etc.

- Controller model: 60A

VH3000HE Energy storage system with wheels

- Front panel with LCD display

- Plug and play connections

- Maximum consumption of 3000 watt/hour

- Maximum solar input of 2880 watts/hour

- Maximum wind controller input of 2400 Watt/hour

- 230V volt AC 50HZ European system (American system available)

- 2x 230V 16 AMP outlets

- 1x 230V 30 AMP socke

- 2x circuit breakers + battery and solar switch

- Hybrid setup: solar, wind or grid connected

- Dimensions: 600 x 600 x 900 mm (LxWxH)

- Easy assembly with a simple bypass system

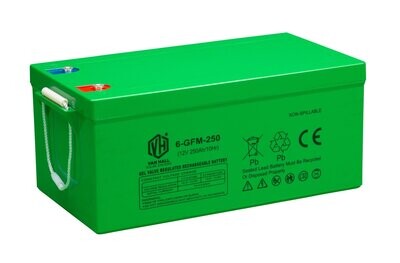

- Space for 4x 12V 250Ah batteries (NOT included)

- Maximum storage of 7.2 kWh, depending on batteries and conditions

Included

- 1x Solar power input cable (1.5 meters)

- 1x 230V input power cable (1.5 meters) E-CE 30 APM

- 1x 230V output power cable (1.5 meters) to external control cabinet

- Simple installation process

Het VH3000HE Zonne-energiesysteem met wielen biedt een veelzijdige en handige oplossing voor uw energiebehoeften. Met zijn LCD-scherm, plug & play-aansluitingen en hybride opstelling maakt het gemakkelijke bediening en integratie met verschillende energiebronnen mogelijk. Het systeem omvat meerdere stopcontacten, stroomonderbrekers en beveiligingsfuncties om veilige en betrouwbare werking te waarborgen. Dankzij de wielen is dit opslagsysteem gemakkelijk te verplaatsen.

Houd er rekening mee dat de opslagcapaciteit afhankelijk is van de gebruikte batterijen en de omgevingsomstandigheden.

Downloads

Click here for

Product description

Click here for

Instruction manual VH3000HE/VH6000HE

Click here for

Installation manual VH3000HE

Click here for

TUV CE Certificate

Logistics

Packed in wooden crate

Dimension:

710 x 660 x 1170 mm
