Description

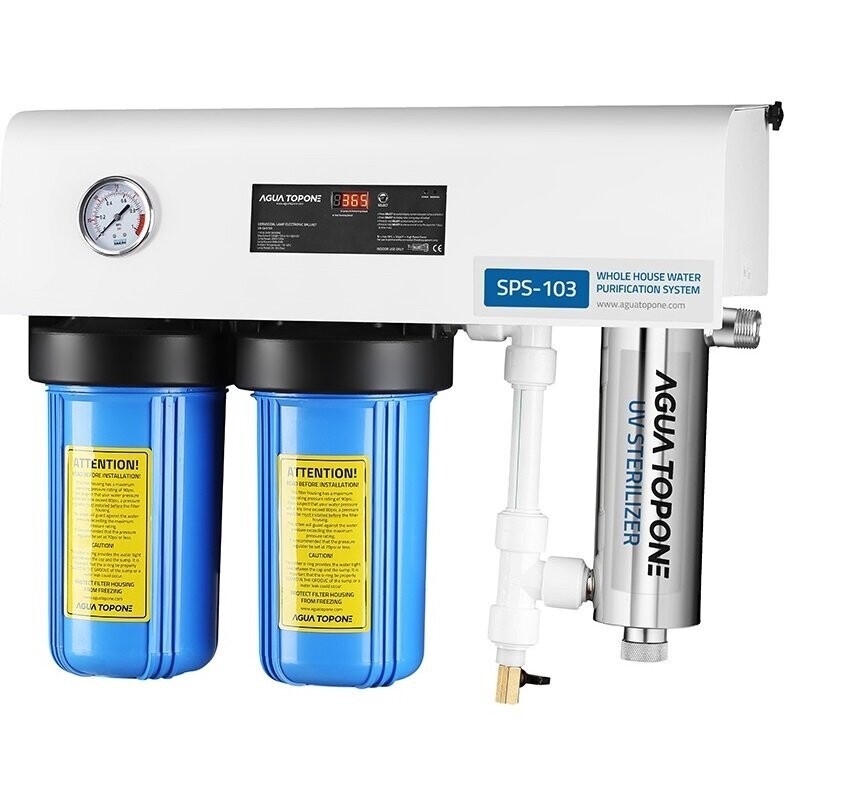

The SPS-103 is a wall-mounted, 3-phase water purification system designed to ensure safe and clean drinking water.
As standard, this water purifier comes with a CTO filter and PP filter. Both filters can be easily replaced with other 10 inch (25cm) water filters to meet your specific purification needs and requirements.
1ST STAGE FILTRATION
CTO Filter
The CTO filter, also known as a Chlorine, Taste, and Odor filter or carbon filter, uses activated carbon blocks to remove chlorine, unpleasant tastes and odors from the water. The filter medium adsorbs the contaminants, purifying the water.
2ND STAGE FILTRATION
PP filter (1 micron)
The PP filter is essential for reducing turbidity in the water by removing coarse particles. It also extends the life of other filters by preventing them from becoming clogged with sediment.
3RD STAGE FILTRATER
UV filter
The UV filter kills up to 99.99% of coliform bacteria and various live contaminants to ensure safer drinking water for your family.
Specifications
- Flow rate: 30 liters per minute.
- Housing material: stainless steel (ss304).
- Input voltage: 110-240 V, 50/60 Hz.
- Power output of UV lamp: 10,000 hours.
- Audible and visible alarm system.
- Inlet/outlet thread: 1 inch.
- Dimensions: 51 x 60,5 x 22 cm
- UV dose: 30 mj/cm2.
- Size of Big Blue housing: 10 inch / 25 cm.
- Pre-filtration housing material: PVC.
Downloads
Click here for
Click here for
Click here for
Installation manual Van Hall Innovations water purification systems
Click here for
Click here for
Information rainwater purification
Logistics
Shipped in carton box:
Dimension box: 76,5 x 34,5 x 76 cm
Net weight/gross weight: 18 kg / 20,5 kg
Product dimension:
60 x 50 x 22 cm
